1. The Science and Framework of Alumina Porcelain Products
1.1 Crystallography and Compositional Variants of Aluminum Oxide

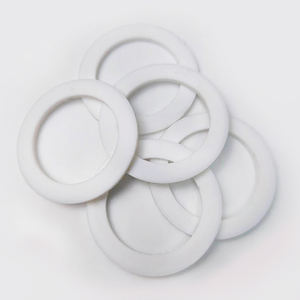

(Alumina Ceramics Rings)
Alumina ceramic rings are made from light weight aluminum oxide (Al two O FOUR), a compound renowned for its outstanding balance of mechanical toughness, thermal security, and electric insulation.
One of the most thermodynamically stable and industrially relevant phase of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) structure belonging to the diamond household.
In this setup, oxygen ions form a dense lattice with aluminum ions inhabiting two-thirds of the octahedral interstitial sites, causing an extremely stable and robust atomic structure.
While pure alumina is theoretically 100% Al Two O ₃, industrial-grade products often have small portions of additives such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O SIX) to regulate grain development throughout sintering and enhance densification.
Alumina ceramics are identified by purity degrees: 96%, 99%, and 99.8% Al Two O five prevail, with higher purity associating to boosted mechanical residential properties, thermal conductivity, and chemical resistance.
The microstructure– specifically grain size, porosity, and stage circulation– plays an essential function in determining the last efficiency of alumina rings in service environments.
1.2 Trick Physical and Mechanical Residence
Alumina ceramic rings exhibit a collection of properties that make them crucial popular industrial settings.
They have high compressive toughness (as much as 3000 MPa), flexural toughness (usually 350– 500 MPa), and exceptional hardness (1500– 2000 HV), making it possible for resistance to wear, abrasion, and deformation under tons.
Their low coefficient of thermal expansion (roughly 7– 8 × 10 ⁻⁶/ K) ensures dimensional stability throughout wide temperature arrays, lessening thermal stress and cracking throughout thermal biking.
Thermal conductivity ranges from 20 to 30 W/m · K, relying on pureness, enabling modest warm dissipation– enough for lots of high-temperature applications without the requirement for energetic cooling.

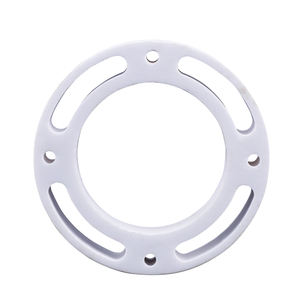

( Alumina Ceramics Ring)
Electrically, alumina is a superior insulator with a volume resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric stamina of around 10– 15 kV/mm, making it excellent for high-voltage insulation elements.
Moreover, alumina demonstrates exceptional resistance to chemical attack from acids, antacid, and molten metals, although it is prone to strike by solid alkalis and hydrofluoric acid at elevated temperature levels.
2. Manufacturing and Accuracy Engineering of Alumina Rings
2.1 Powder Processing and Forming Techniques
The manufacturing of high-performance alumina ceramic rings begins with the option and preparation of high-purity alumina powder.
Powders are usually synthesized by means of calcination of light weight aluminum hydroxide or via advanced methods like sol-gel processing to achieve fine bit dimension and narrow dimension distribution.
To create the ring geometry, several forming techniques are used, consisting of:
Uniaxial pushing: where powder is compressed in a die under high stress to develop a “environment-friendly” ring.
Isostatic pressing: applying uniform pressure from all instructions making use of a fluid medium, resulting in greater thickness and even more consistent microstructure, especially for facility or huge rings.
Extrusion: ideal for lengthy cylindrical types that are later on reduced right into rings, typically used for lower-precision applications.
Injection molding: utilized for complex geometries and limited resistances, where alumina powder is combined with a polymer binder and injected right into a mold and mildew.
Each approach affects the final thickness, grain alignment, and issue circulation, requiring cautious procedure selection based upon application requirements.
2.2 Sintering and Microstructural Development
After shaping, the eco-friendly rings undertake high-temperature sintering, commonly between 1500 ° C and 1700 ° C in air or controlled environments.
Throughout sintering, diffusion mechanisms drive bit coalescence, pore removal, and grain growth, bring about a totally dense ceramic body.
The price of home heating, holding time, and cooling down account are exactly regulated to avoid breaking, bending, or exaggerated grain growth.
Ingredients such as MgO are typically presented to inhibit grain border mobility, causing a fine-grained microstructure that boosts mechanical stamina and dependability.
Post-sintering, alumina rings may undertake grinding and washing to achieve limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), critical for securing, bearing, and electrical insulation applications.
3. Practical Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely used in mechanical systems because of their wear resistance and dimensional security.
Trick applications consist of:
Sealing rings in pumps and shutoffs, where they resist disintegration from rough slurries and destructive liquids in chemical processing and oil & gas sectors.
Birthing elements in high-speed or harsh environments where metal bearings would certainly deteriorate or need constant lubrication.
Overview rings and bushings in automation tools, using reduced friction and lengthy life span without the need for greasing.
Put on rings in compressors and wind turbines, decreasing clearance in between revolving and fixed parts under high-pressure conditions.
Their ability to preserve performance in dry or chemically aggressive environments makes them superior to numerous metal and polymer choices.
3.2 Thermal and Electric Insulation Functions
In high-temperature and high-voltage systems, alumina rings work as important insulating parts.
They are used as:
Insulators in burner and furnace elements, where they support repellent cords while standing up to temperature levels above 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, preventing electric arcing while keeping hermetic seals.
Spacers and assistance rings in power electronics and switchgear, separating conductive parts in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high failure toughness make sure signal integrity.
The mix of high dielectric toughness and thermal security allows alumina rings to operate reliably in environments where organic insulators would degrade.
4. Material Advancements and Future Outlook
4.1 Composite and Doped Alumina Equipments
To even more boost performance, scientists and producers are creating sophisticated alumina-based composites.
Instances include:
Alumina-zirconia (Al Two O SIX-ZrO TWO) compounds, which exhibit enhanced fracture durability via makeover toughening mechanisms.
Alumina-silicon carbide (Al ₂ O SIX-SiC) nanocomposites, where nano-sized SiC bits enhance hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain boundary chemistry to enhance high-temperature toughness and oxidation resistance.
These hybrid products extend the operational envelope of alumina rings right into even more severe problems, such as high-stress dynamic loading or quick thermal cycling.
4.2 Emerging Fads and Technological Integration
The future of alumina ceramic rings depends on clever combination and precision production.
Trends consist of:
Additive production (3D printing) of alumina components, making it possible for intricate interior geometries and tailored ring styles previously unreachable through standard methods.
Useful grading, where make-up or microstructure differs across the ring to optimize performance in various areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking through embedded sensing units in ceramic rings for anticipating upkeep in commercial machinery.
Raised use in renewable resource systems, such as high-temperature fuel cells and concentrated solar energy plants, where material integrity under thermal and chemical stress and anxiety is critical.
As sectors demand higher effectiveness, longer life expectancies, and minimized maintenance, alumina ceramic rings will certainly remain to play a critical role in making it possible for next-generation design services.
5. Vendor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality tabular alumina, please feel free to contact us. (nanotrun@yahoo.com) Tags: Alumina Ceramics, alumina, aluminum oxide
